ES50 Ex Hoist

ES 40 12.5t
Explosion proof hoist ES50 technical Data

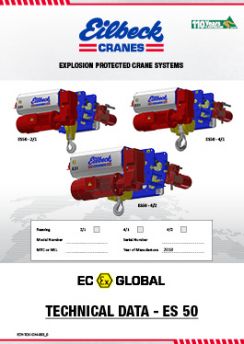

Download Technical Data for ES50

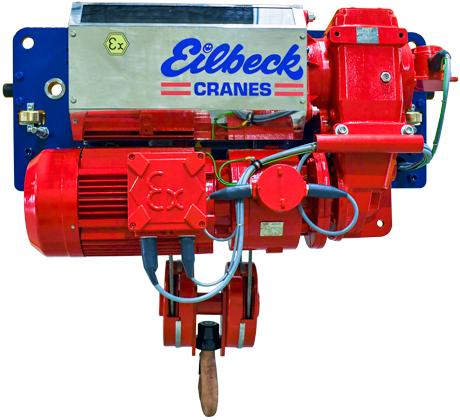

Hoist ES50

Capacity Up to 12,500 kg
Model Load Capacity (t) Reeving HOL (m) FEM ISO Hoist Speeds (m/min) Trolley Speed (m/min)
ES 5008 1.6 4/2 12 20 30 4m M7       16/2.4 20/5 10/2.5
ES 5012 2.5 2/1 12 20 30 2m M5       16/2.4 20/5 10/2.5
ES 5012 2.5 4/2 12 20 30 2m M7 8/13 10/1.6 12/2   20/5 10/2.5
ES 5016 3.2 2/1 12 20 30 2m M5       16/2.4 20/5 10/2.5
ES 5008 3.2 4/1 6 10 15 4m M7       8/1.3 20/5 10/2.5
ES 5016 3.2 4/2 12 20 30 4m M7 8/13 10/1.6     20/5 10/2.5
ES 5016 3.2 4/2 12 20 30 3m M6     12/2   20/5 10/2.5
ES 5010 4.0 4/1 6 10 15 3m M7   5/0.8 6.3/1 8/1.3 20/5 10/2.5
ES 5020 4.0 4/2 12 20 30 4m M7 8/13       20/5 10/2.5
ES 5032 5.0 2/1 12 20 30 1Am M4   10/1.6     20/5 10/2.5
ES 5025 5.0 2/1 12 20 30 1Am M6     12/2   20/5 10/2.5
ES 5012 5.0 4/1 6 10 15 4m M7 4/0.7 5/0.8 6.3/1   20/5 10/2.5
ES 5012 5.0 4/1 6 10 15 3m M6       8/1.3 20/5 10/2.5
ES 5025 5.0 4/2 12 20 30 2m M5 8/13 10/1.6     20/5 10/2.5
ES 5025 5.0 4/2 12 20 30 3m M6 8/13       20/5 10/2.5
ES 5032 5.0 4/2 12 20 30 2m M5 8/13       20/5 10/2.5
ES 5016 6.3 4/1 6 10 15 4m M7 4/0.7 5/0.8     20/5 10/2.5
ES 5016 6.3 4/1 6 10 15 3m M6     6.3/1   20/5 10/2.5
ES 5016 6.3 4/1 6 10 15 2m M5       8/1.3 20/5 10/2.5
ES 5025 8.0 4/1 6 10 15 4m M7 4/0.7       20/5 10/2.5
ES 5025 10.0 4/1 6 10 15 2m M5 4/0.7 5/0.8     20/5 10/2.5
ES 5025 10.0 4/1 6 10 15 3m M6 4/0.7       20/5 10/2.5
ES 5025 10.0 4/1 6 10 15 1Am M6     6.3/1   20/5 10/2.5
ES 5032 12.5 4/1 6 10 15 2m M5 4/0.7       20/5 10/2.5
ES 5032 12.5 4/1 6 10 15 1Am M4   5/0.8     20/5 10/2.5
