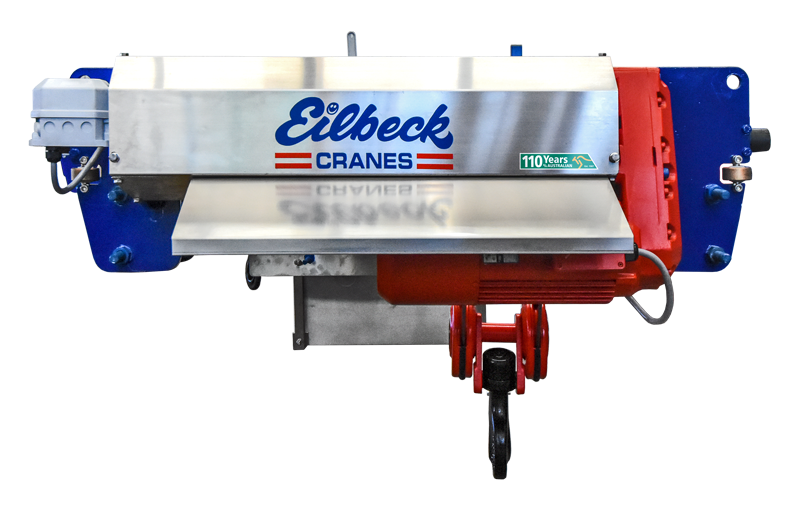

ES40 Hoist
Hoist ES40 |
Capacity Up to 6300 kg |
||||||||||||||
| Model | Load Capacity (t) | Reeving | HOL (m) | FEM | ISO | Hoist Speeds (m/min) | Trolley Speed (m/min) | ||||||||
| ES 4008 | 1.6 | 4/2 | 12 | 20 | 30 | 3m | M6 | 8/13 | 10/1.6 | 12/2 | 20/5 | 10/2.5 | |||
| ES 4012 | 2.5 | 2/1 | 12 | 20 | 30 | 2m | M5 | 8/1.3 | 20/5 | 10/2.5 | |||||
| ES 4012 | 2.5 | 4/1 | 12 | 20 | 30 | 2m | M5 | 8/13 | 10/1.6 | 12/2 | 20/5 | 10/2.5 | |||
| ES 4016 | 3.2 | 2/1 | 12 | 20 | 30 | 1Am | M4 | 16/2.4 | 20/5 | 10/2.5 | |||||
| ES 4008 | 3.2 | 4/1 | 6 | 10 | 15 | 3m | M6 | 4/0.7 | 5/0.8 | 6.3/1 | 20/5 | 10/2.5 | |||
| ES 4016 | 3.2 | 4/1 | 12 | 20 | 30 | 2m | M5 | 8/13 | 10/1.6 | 12/2 | 20/5 | 10/2.5 | |||
| ES 4010 | 4.0 | 4/1 | 6 | 10 | 15 | 3m | M6 | 4/0.7 | 5/0.8 | 6.3/1 | 8/1.3 | 20/5 | 10/2.5 | ||
| ES 4012 | 5.0 | 4/1 | 6 | 10 | 15 | 2m | M5 | 4/0.7 | 5/0.8 | 6.3/1 | 8/1.3 | 20/5 | 10/2.5 | ||
| ES 4016 | 6.3 | 4/1 | 6 | 10 | 15 | 2m | M5 | 4/0.7 | 5/0.8 | 6.3/1 | 20/5 | 10/2.5 | |||
| ES 4016 | 6.3 | 4/1 | 6 | 10 | 15 | 1Am | M4 | 8/1.3 | 20/5 | 10/2.5 | |||||
